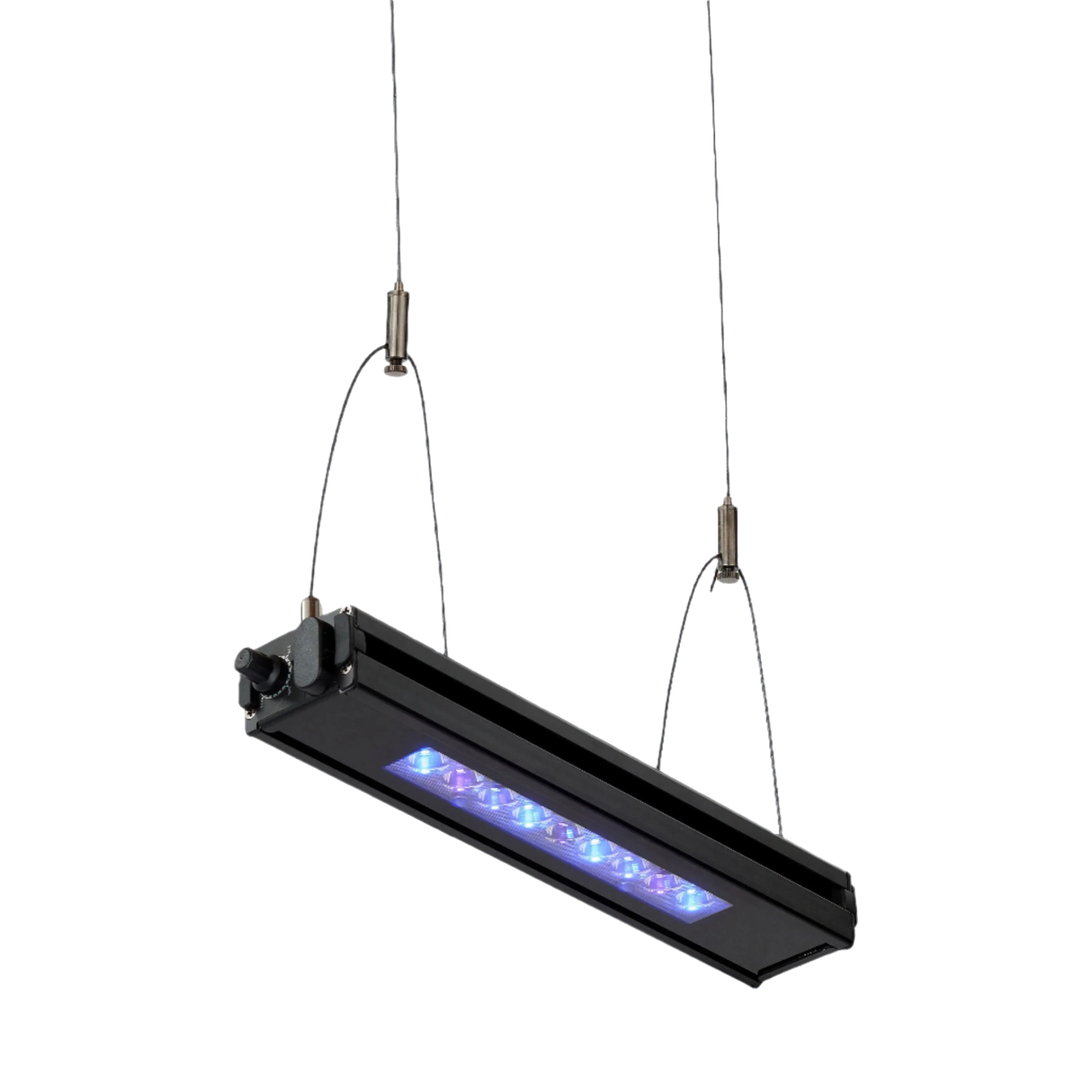

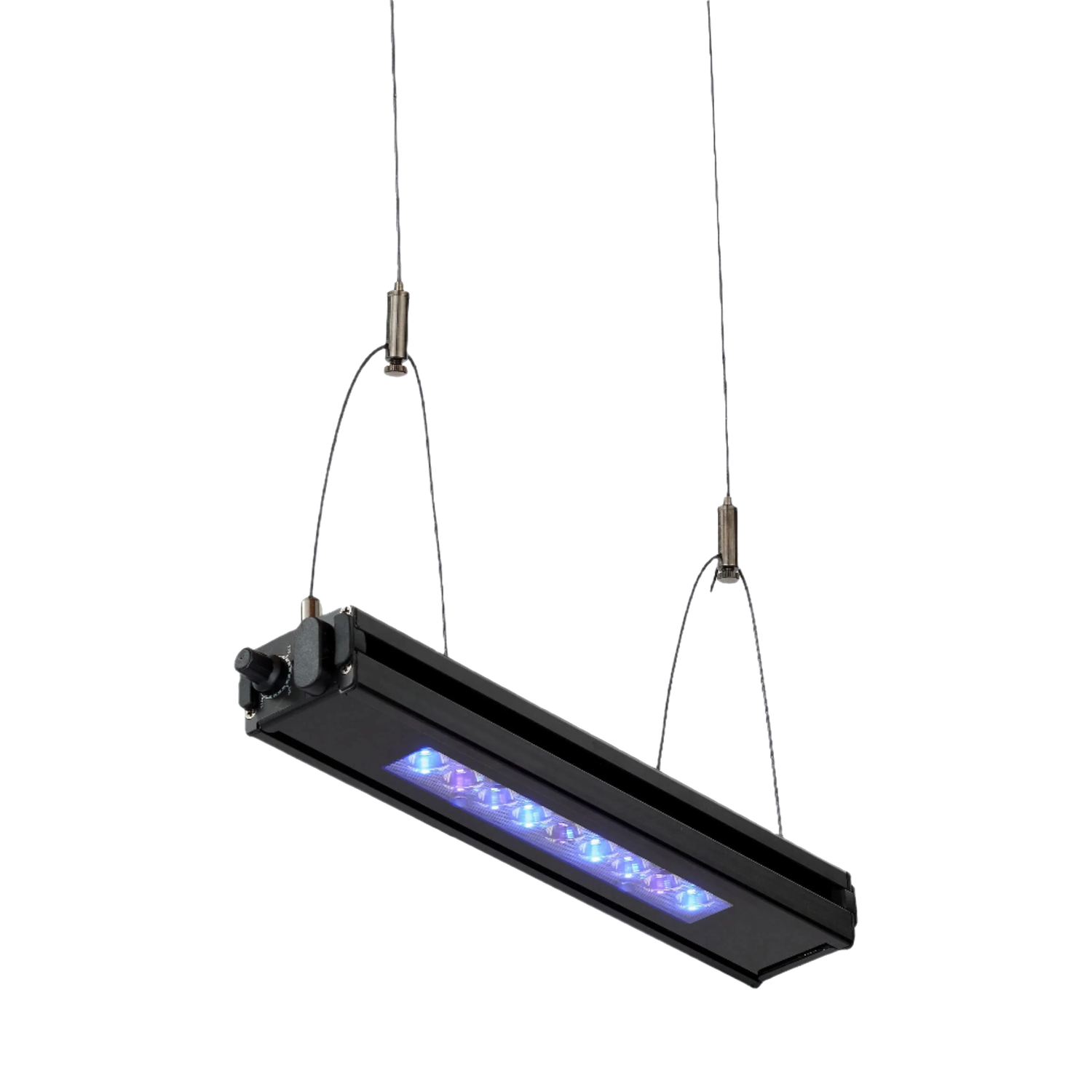

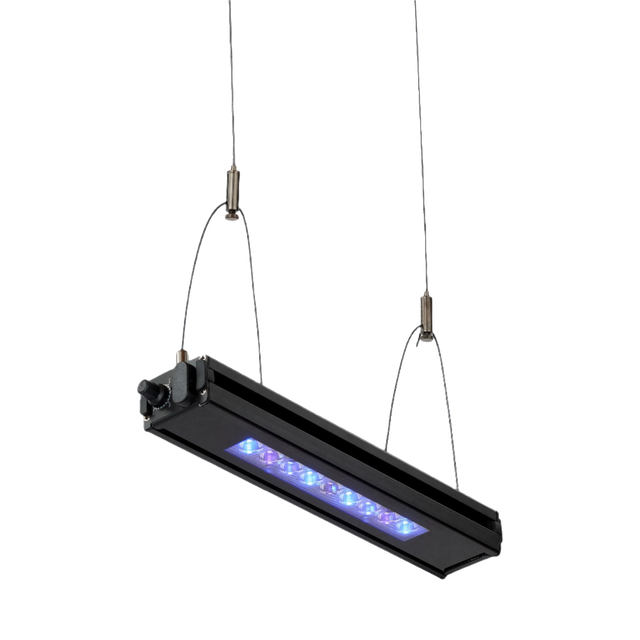

Meridian Edge 12

Specifications:

• Coverage Area: 24" x 6–8" (60cm x 15–20cm)
• Recommended Mounting Height: 14" (35cm) above waterline with OHM Balance Optics
• Max Power Draw (App): 30 watts
• Max Power Draw (Manual): 22.5 watts
• Case Dimensions (LxWxH): 11.32" (28.75cm) x 2" (5cm) x 1.35" (3.43cm)
• Weight: 1.15 lbs (0.523 kg)
• Total Length (including plug & manual controller): 13.57" (34.5cm)
• Total Case Height (including bolts): 1.53" (3.88cm)
• Warranty: 2 years on light, 1 year on power supply

Experience the Next Level in Reef Lighting

Introducing the ReefBreeders Meridian Edge:

Introducing the Meridian Edge Bars, the latest in lighting technology designed specifically to grow vibrant, thriving coral. Engineered for serious coral enthusiasts, the Edge Bars deliver peak performance, exceptional flexibility, and precise control to enhance coral health and growth like never before.

On their own, each Edge Bar provides 6 to 8 inches of powerful, targeted coverage at a 10–14 inch mounting height. When combined with a Meridian fixture, they expand total front-to-back coverage from 24 inches to 30 inches, ensuring even the largest coral colonies receive optimal light from all angles.

Choose the Perfect Spectrum

Freshwater

Royal Ice

Reefer 14K

UV/Blue Hybrid

Control Your Lighting Your Way:

• Manual Control: One-channel control with 75% max output and built-in 8, 10, or 12-hour timers.
• App & Manual Control: Unlock 100% power with dual-channel control using the ReefBreeders app. Bluetooth support coming soon via software update.

Every manual Edge Bar can be upgraded to full app control with a quick and easy hardware swap, ensuring your system can evolve as your reef grows.

Ocular Hollow Matrix (OHM) Optics

The game-changing OHM optics focus light exactly where corals need it, penetrating deeper than traditional LED bars. These optics provide the intensity required for serious coral growth—even in tanks 30 inches or deeper.

Optional Edge Articulating Mounts allow precision angling, directing light exactly where needed. This ensures corals receive illumination from multiple angles, promoting healthier, more even growth.

With a durable aluminum body and sleek black finish, the Edge Bars integrate seamlessly into any reef setup. Using the optional Octo Cable, multiple bars can be connected to a single power source for a cleaner, more efficient installation.

Edge Series Wattage Comparison

Specifications Continued:

• 1 power input port
• Adjustable M6x1.0mm bolts on top of case (2 included for BOT mounts or T-track systems; 2 additional bolts required for hanging wires)
• Front and rear tracks for mounting to Meridian (Edge Articulating Mounts required)
• Built-in Manual Controller
• 2.4GHz WiFi control with Bluetooth available via the ReefBreeders app
