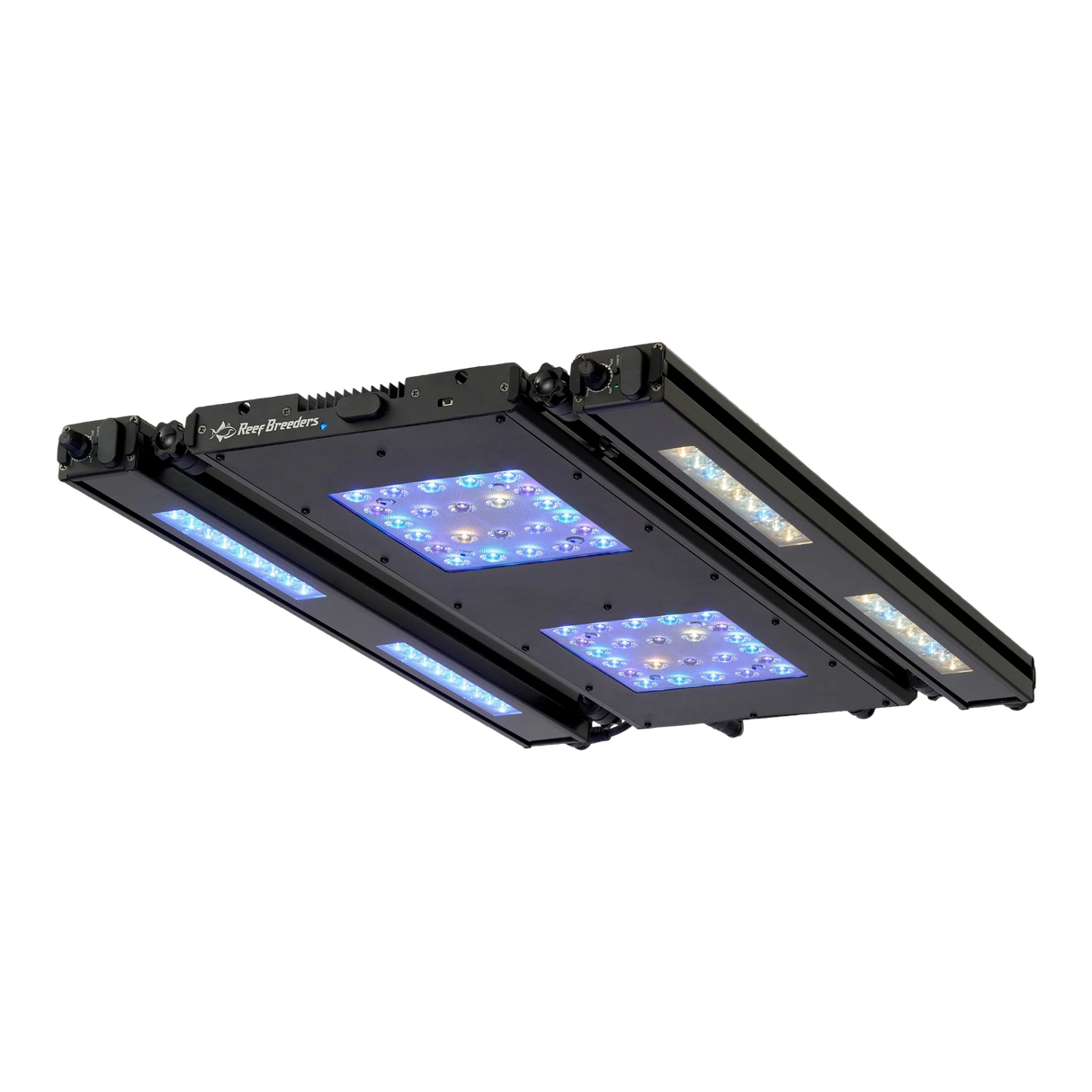

Meridian 24 + Edge 24 Bar Bundle

The Meridian 24 Edge Bar Bundle pairs the Meridian 24 with two Edge 24 LED bars to form a powerful, wide-coverage lighting system ideal for mixed reefs and SPS-dominant tanks. This kit includes everything required to mount and connect both Edge Bars directly to the Meridian, along with a correctly sized power supply that allows the entire assembly to run cleanly from a single connection.

Bundle Components

• Meridian 24 (light only)
• Edge 24 App + Manual x 2 (spectrum of your choice)
• Edge Articulating Mounts x 2
• Daisy Chain Cable for 2 Edge Bars
• 300W Power Supply (correct size to run the full assembly)

Assembly Specs

• Total Assembly Weight: 11.25 lbs (5.15 kg)
• Total Width with Edge Bars Level: 15" (38 cm)

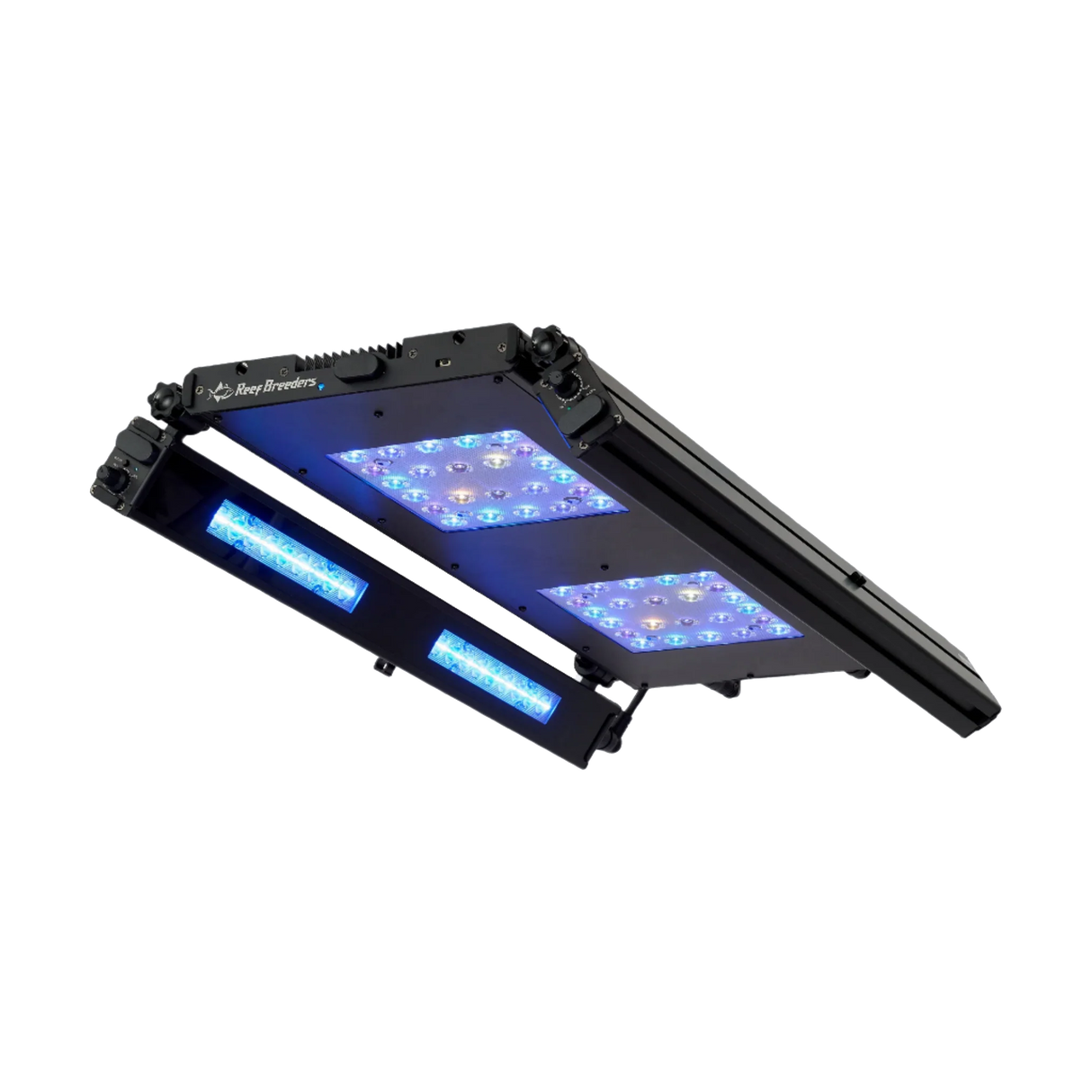

• Total Width with Edge Bars Fully Tilted: 13.25" (33.65 cm)
• Recommended Mounting Height: 14" (35 cm) above waterline
• Note: Mounting hardware such as side legs, back-of-tank mounts, or hanging wires is sold separately.

Meridian 24 — Advanced Reef Lighting

The Meridian is more than just a light — it is a complete lighting system designed for long-term reliability, high-end performance, and modular expandability. Every element has been engineered to support coral vitality and deliver top-tier results for demanding reef environments.

At the heart of the Meridian is its ultra-refined spectrum featuring 440nm indigo LEDs—a wavelength rarely found in aquarium lighting but essential for enhancing coral coloration and supporting deeper fluorescence. The Meridian’s extended 400–440nm violet/indigo range delivers the wavelengths that drive coral growth, pigmentation, and overall health.

The Meridian platform is highly modular and expandable. Multiple Meridians and Edge Bars can run from a single shared power supply, supporting up to 600 watts of combined output. This significantly reduces outlet usage and helps simplify wire management in large reef systems.

Installation and mounting flexibility are core design principles. The Meridian can be suspended, mounted using side or back brackets, or integrated into T-track installations. Edge bars connect seamlessly using the included articulating mounts for precision angling and optimized coverage.

Meridian LED Layout Options

Original Layout
A crisp 20K blue appearance with enhanced 440nm output and a strong white-to-blue ratio.

14K Layout
Increased white LED count with separate warm and neutral whites for fine color tuning.

Edge 24 Bars — Spectrum Fill & Enhanced Coverage

The two included Edge 24 LED bars add significant front-to-back coverage and enhance spectral uniformity across your reef. Individually, each Edge Bar provides 6–8 inches of high-intensity targeted coverage. When paired with the Meridian 24, total coverage expands to approximately 30 inches, supporting wide aquascapes and mature coral colonies.

With the included Edge Articulating Mounts, each bar can be independently angled to reduce shading and illuminate corals from multiple angles—something no traditional LED bar can match.

Edge Bar Spectrum Options

Royal Ice
Royal blue + cool blue for maximum fluorescence and pop.

UV/Blue Hybrid
Near-UV, violet, indigo, and royal blue for enhanced coloration and growth.

Reefer 14K
A balanced mix of white, blue, and UV for a natural reef appearance.

Control & Customization

The Edge 24 bars included in this bundle are the App + Manual models:

• Manual Mode: Single-channel dimming with 8/10/12 hr timer options
• App Mode: Full 100% output, dual-channel control, and scheduling via ReefBreeders app

Your Complete Wide-Coverage Reef Lighting Solution

The Meridian 24 Edge Bar Bundle offers an exceptional balance of depth penetration, front-to-back spread, spectral richness, and expandability. Designed for serious reef keepers, this system delivers professional-grade performance with clean wiring and unmatched configurability.
