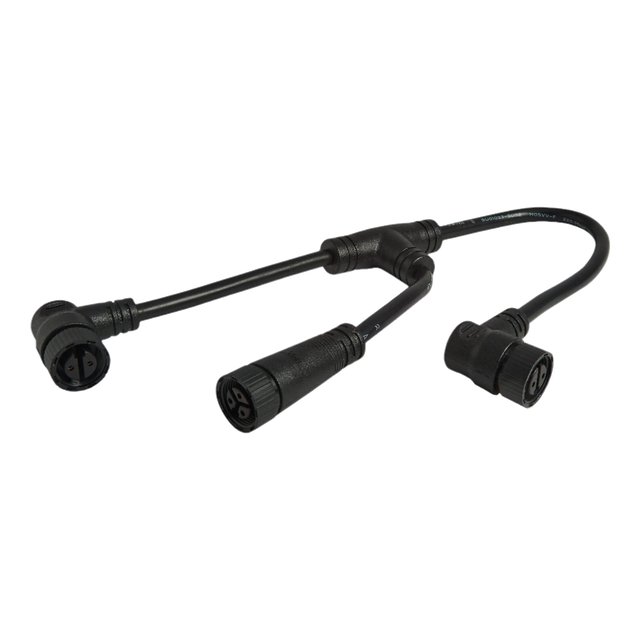

Meridian to 2 Edge Bar Daisy Chain Cable
Meridian to 2 Edge Bar Daisy Chain Cable is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Meridian to Edge Daisy Chain Cable
The Meridian to Edge Daisy Chain Cable plugs into the 3-prong daisy chain port on your Meridian, allowing you to power two Edge Bars directly from a single Meridian light. A larger power supply is required for this setup.
This cable is 24" (60cm) long, not including connectors, and is designed specifically for linking one Meridian to two Edge Bars. It cannot be used to add additional Meridians in the same chain.
Daisy Chain Cable Options
- Daisy Chain Cable 24" (60cm): Connect multiple Meridian lights perpendicular to the front of your aquarium. Example: Up to eight Meridian 11 fixtures (75W each) using a 600W power supply.
- Meridian to 2 Edge Bar Daisy Chain Cable: Connect one Meridian to two Edge Bars. This setup does not support additional Meridians in the chain.
- Octo-Cable (4-Way): Connect up to four Edge Bars to a single cable and power supply for a cleaner, consolidated setup.
Always verify that your total wattage matches your selected power supply to ensure proper performance and safety.
Power Requirements
| Light Setup | Max Power Draw | Power Supply Required | Parts Required |
|---|---|---|---|
| Meridian 11 + 2 Edge 12 | 135W | 150W | Daisy Chain Cable for 2 Edge Bars |
| Meridian 24 + 2 Edge 24 | 270W | 300W | Daisy Chain Cable for 2 Edge Bars |
| Meridian 35 + 2 Edge 35 | 405W | 450W | Daisy Chain Cable for 2 Edge Bars |
| Meridian 45 + 2 Edge 45 | 540W | 600W | Daisy Chain Cable for 2 Edge Bars |
