Waterbox AIO 20 CUBE — No Cabinet / System Only
Representative product image. The selected finish or configuration may differ.
Waterbox · Aquariums

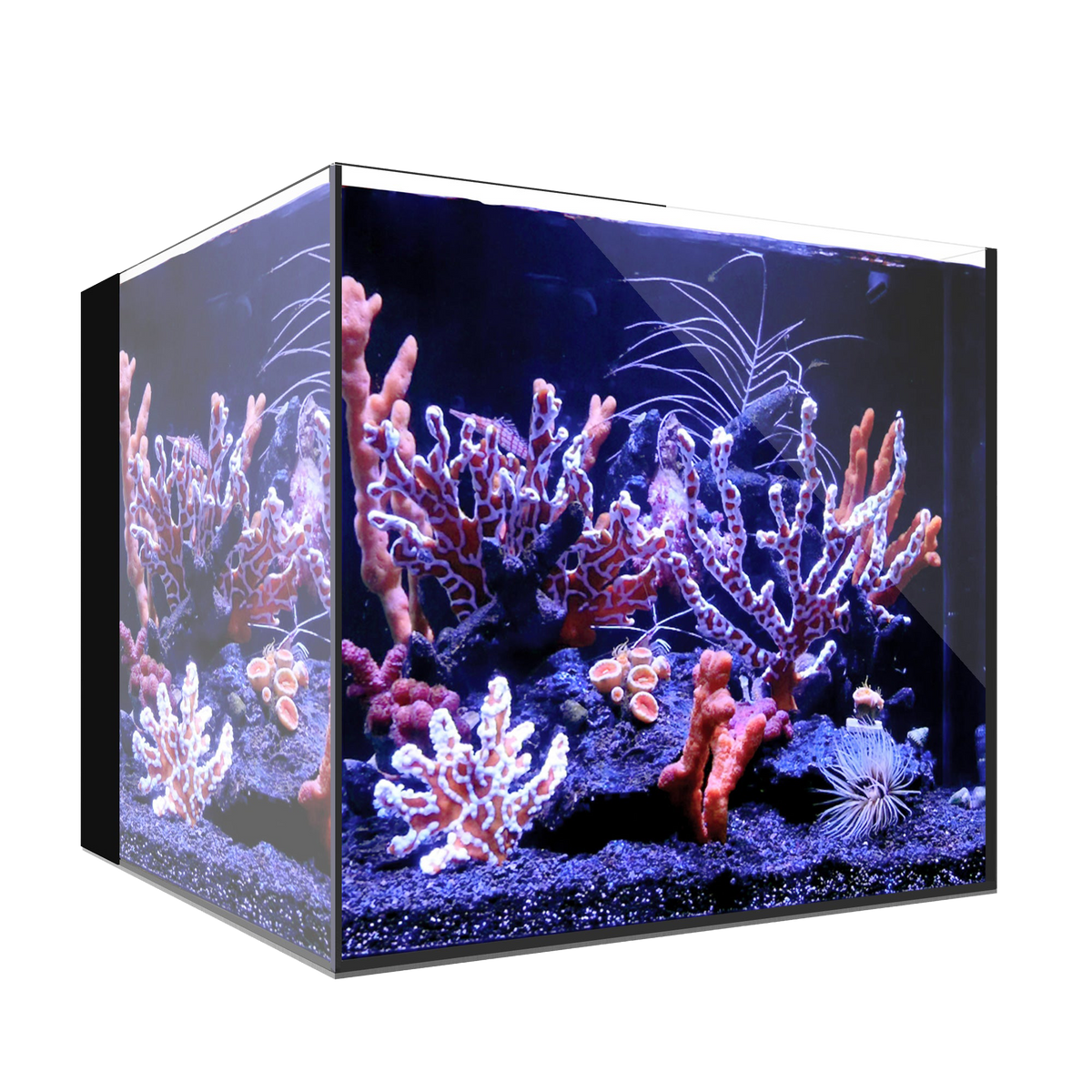

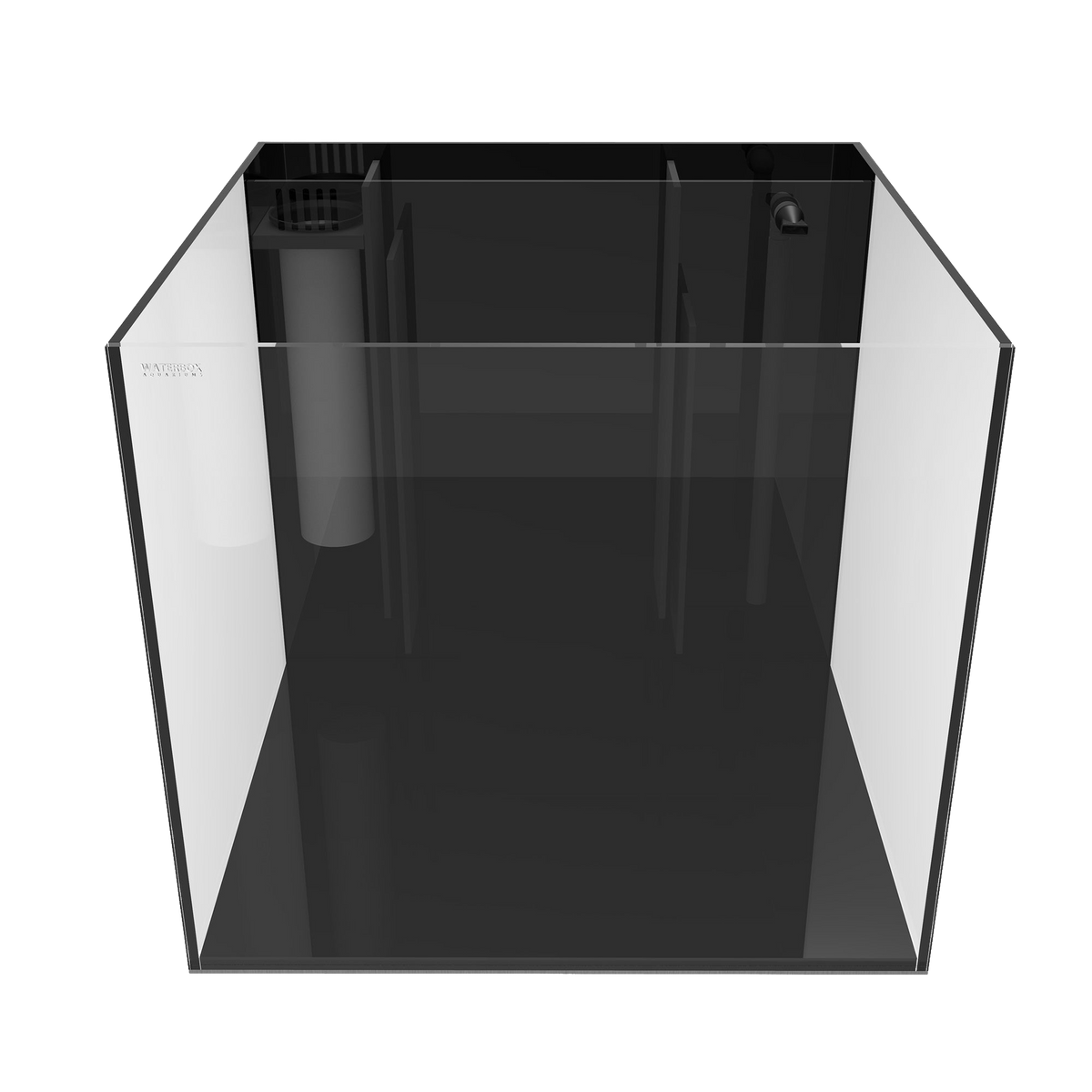

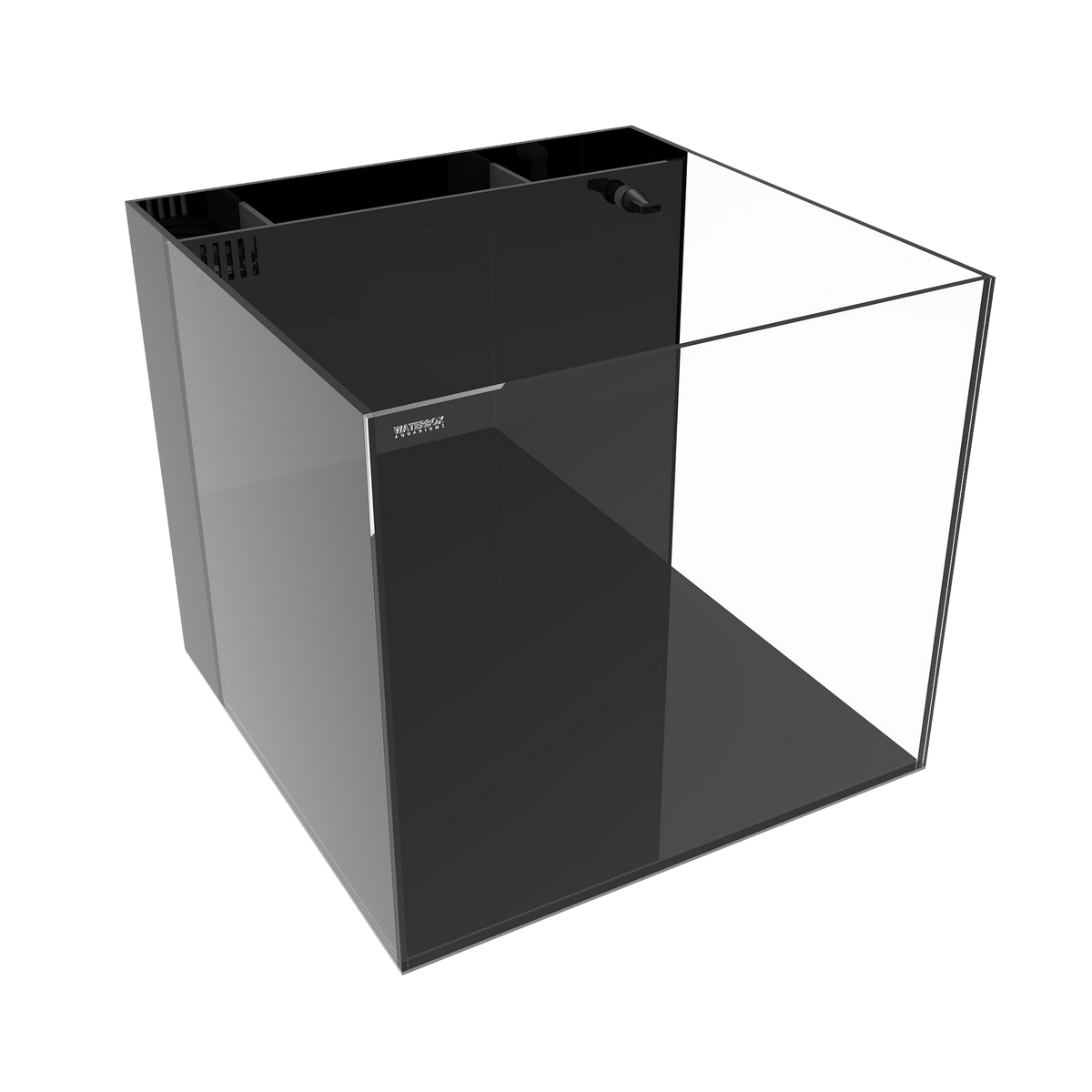

Waterbox AIO 20 CUBE
$369.99 CAD
Taxes and delivery confirmed before payment.
AIO 20 CUBE combines an ultra-clear glass display with filtration chambers built into the aquarium. Its integrated layout keeps the filtration together for a compact saltwater setup.
- Aquarium dimensions (L × W × H)
- 450 x 450 x 400mm / 17.7" × 17.7" × 15.7"
- Aquarium volume
- 76 L / 20.0 gals
- Aquarium glass thickness
- 6mm (1/4")
SKU: A1100
Your next aquarium
Let’s plan your setup.
We’ll confirm availability, timing, and delivery or pickup for your selected aquarium. Need equipment too? We can help put together a complete setup.
Enquiry only. No payment required.
The details, before you decide
Specifications
Aquarium
| Dimensions (LxWxH) | 450 x 450 x 400mm / 17.7" × 17.7" × 15.7" |
|---|---|
| Tank Volume | 76 L / 20.0 gals |
| Glass Thickness | 6mm (1/4") |
| Aquarium Weight | 17.5 kg/39 lbs |
| Front & Sides | Ultra-clear Low Iron glass (front and sides) |
| Transmittance | 91% |

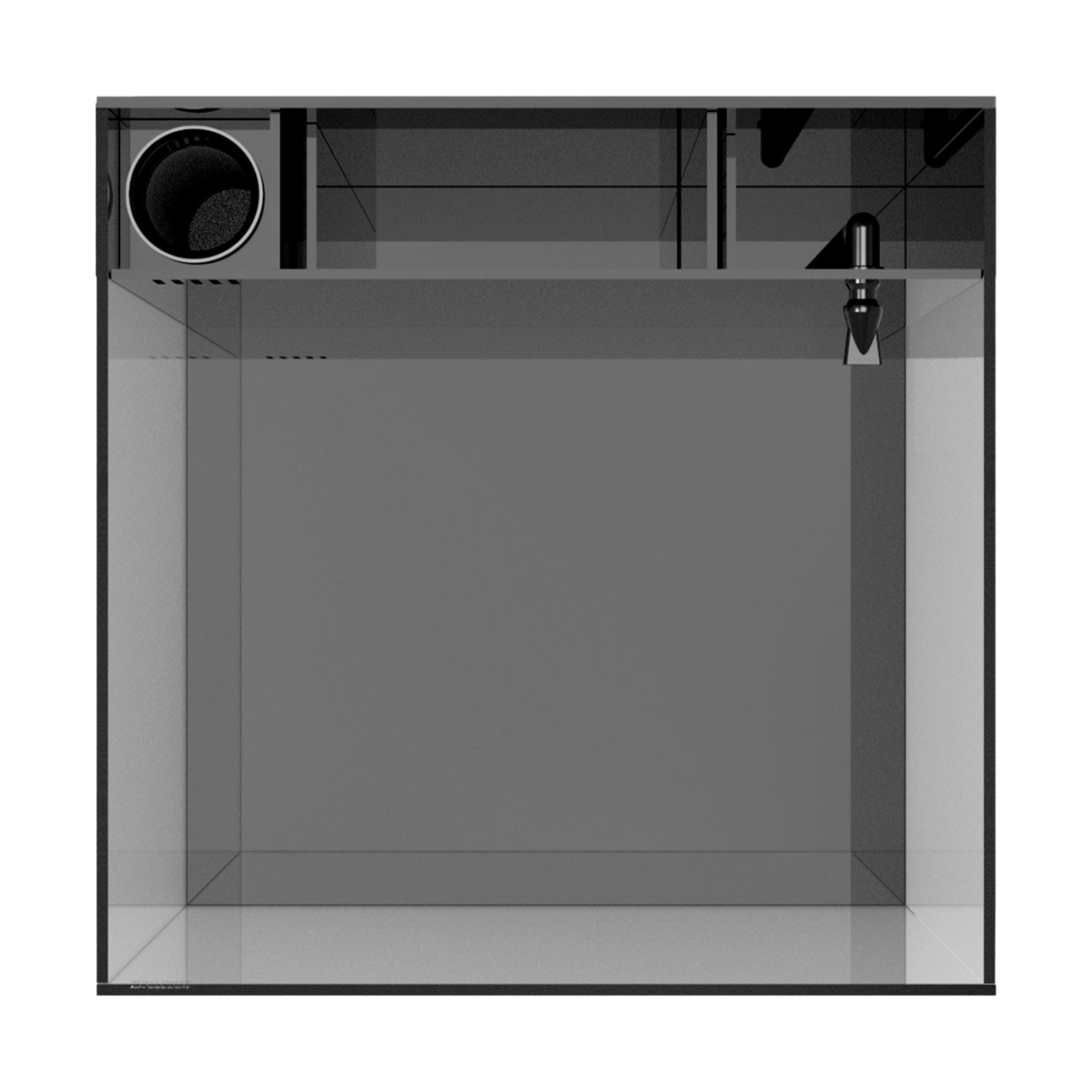

| Filtration Compartment (Int. Dimensions) | 438 x 80 x 387mm / 17.2" × 3.1" ×15.2" |
| Filter Sock Chamber (Int. Dimensions) | 80 x 80 x 387mm / 3.1" × 3.1" × 15.2" |
| Media/Skimmer Chamber (Int. Dimensions) | 200 x 80 x 387mm / 7.9" × 3.1" ×15.2" |
| Pump Chamber (Int. Dimensions) | 80 x 118 x 387mm / 3.1" × 4.6" × 15.2" |
| Directional Nozzle (Thread Size) | 1 x M14 (14mm), Flare |
| Return Hose | lD: 12mm OD: 16mm |
| Pump | AP-1500 |
| Pump Flow | 1000 LPH/265 GPH |
| EVA Mat | x 1 |
Filtration
| 225 Micron Filter Socks | 1 x 70mm/2.75" FELT |
|---|---|
| Filtration Sponge | x 2 |
| Activated Carbon | 150g |
| Ceramic Ring | 300g |

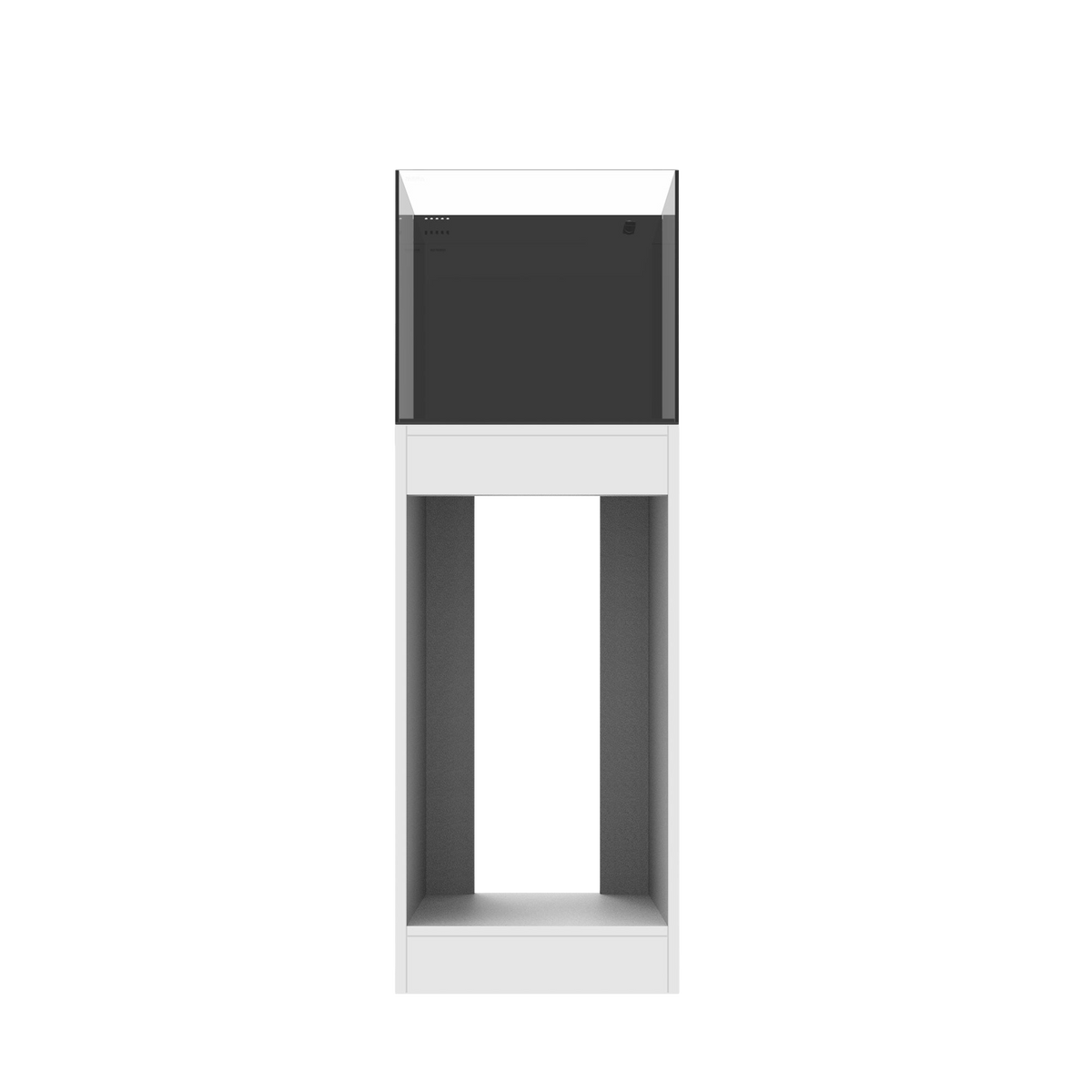

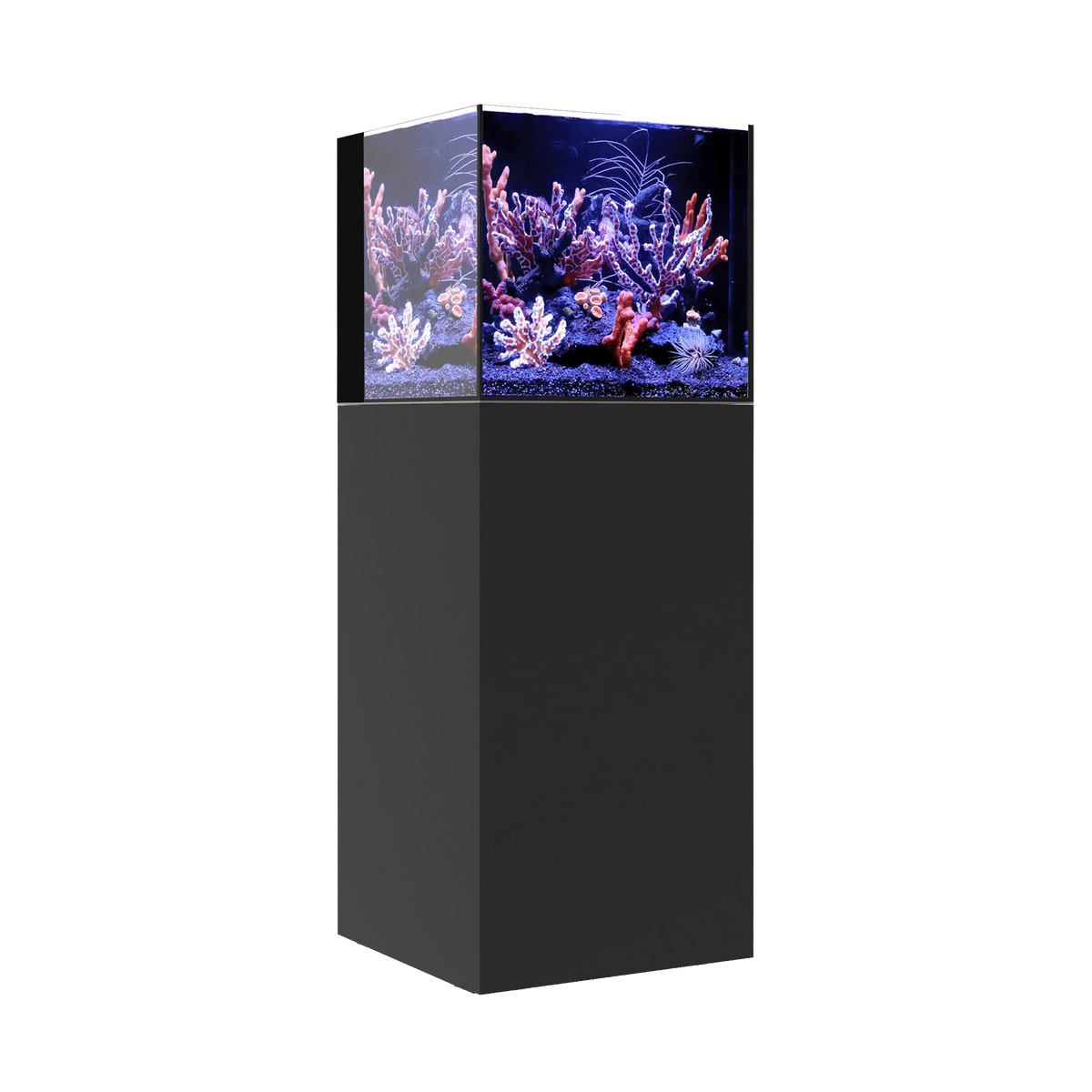

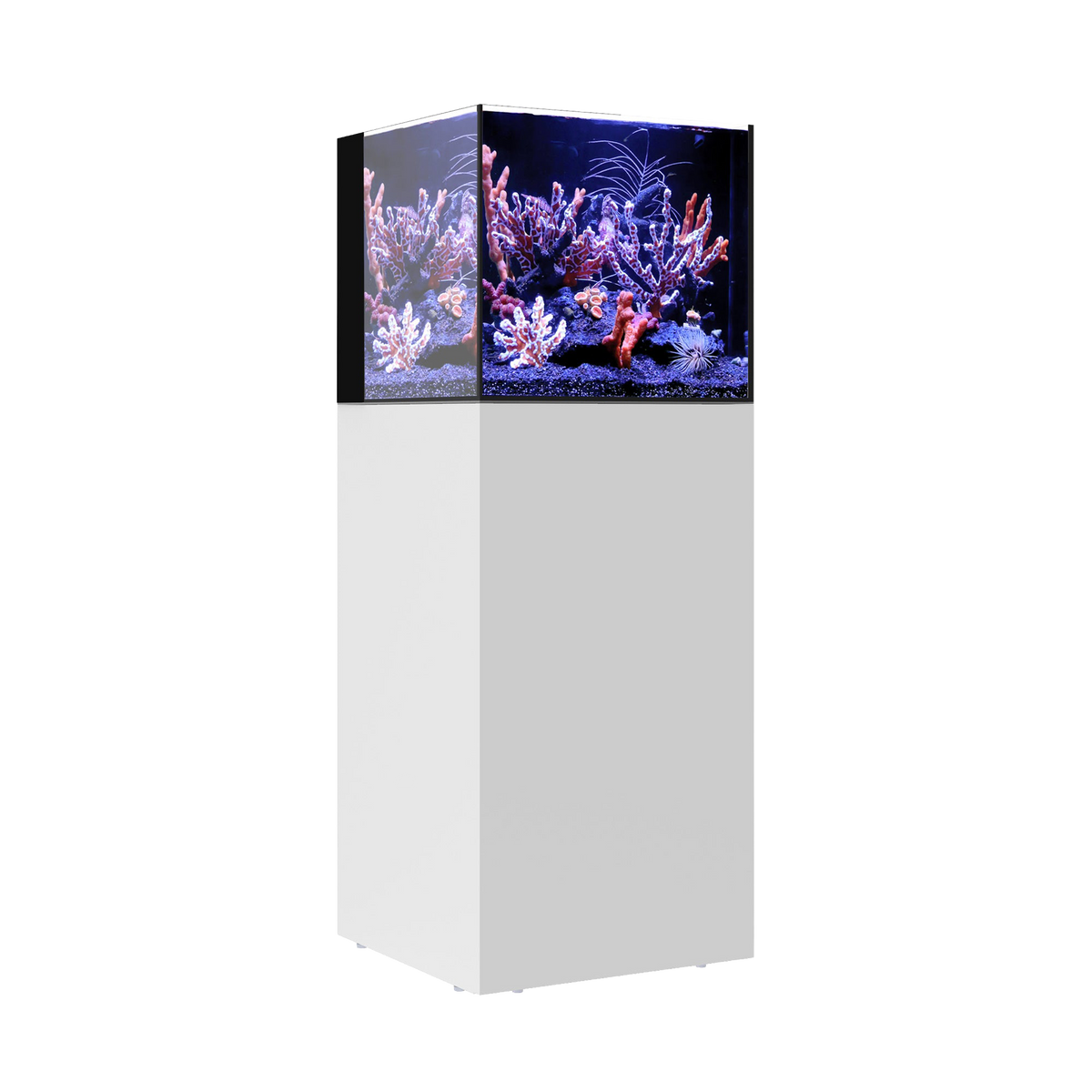

Cabinet (optional)
| Cabinet Model | PB 1818 |
|---|---|
| Dimensions | 450 x 450 x 810mm / 17.7"×17.7"×31.9" |
| Material | 18mm PVC Laminated Wood Oriented Strand Board |
| Door(s) & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Bottom Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Back Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Cabinet options | White / Black / Aspen |
Manufacturer volumes are nominal. Allow room for plumbing, cables, ventilation and maintenance. Cabinet specifications apply only when a cabinet is selected.
Manufacturer information ↗What’s included
- Ultra-clear glass aquarium with integrated filtration chambers
- Adjustable return nozzle(s) and stabilizing foam mat
- Filter socks, filtration sponges, activated carbon and ceramic rings
- AP-1500 return pump (manufacturer-rated flow: 1,000 L/h)
- Matching cabinet only when a cabinet finish is selected; No Cabinet includes the aquarium without a cabinet.
Plan separately
- Aquarium lighting matched to the intended livestock
- Heater if needed for the chosen livestock, plus temperature monitoring
- An appropriate level aquarium stand if purchasing without a cabinet
Build it around your aquarium
Let’s put your setup together.
We’ll confirm the model, compatible equipment, availability and delivery or pickup before you pay.
