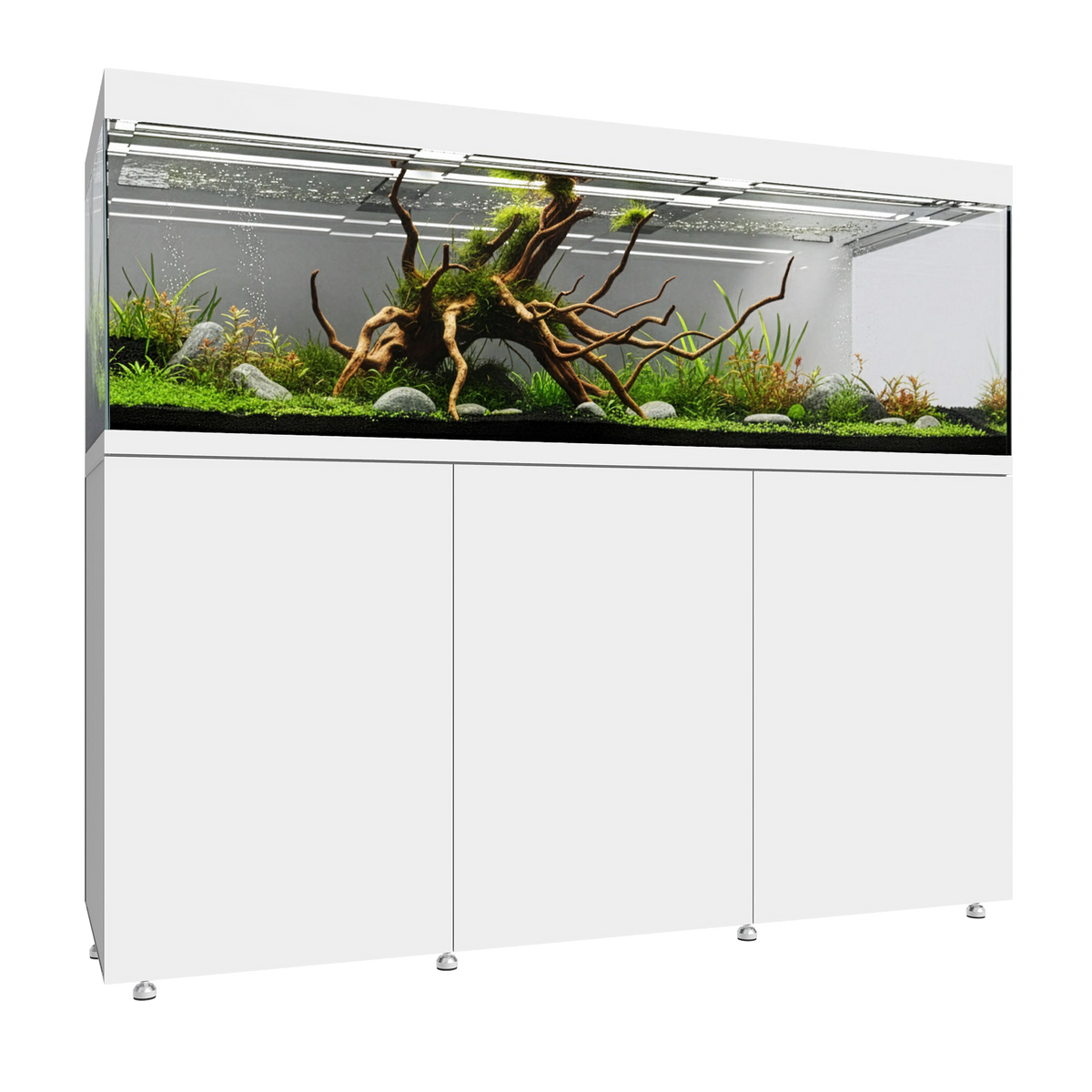

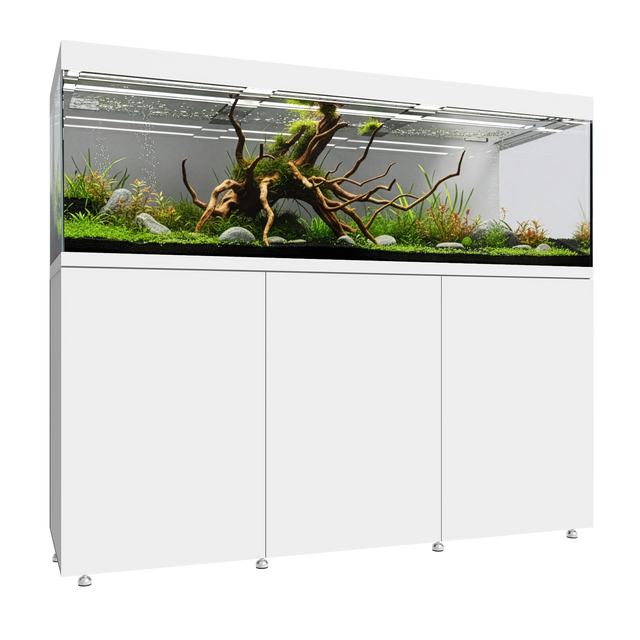

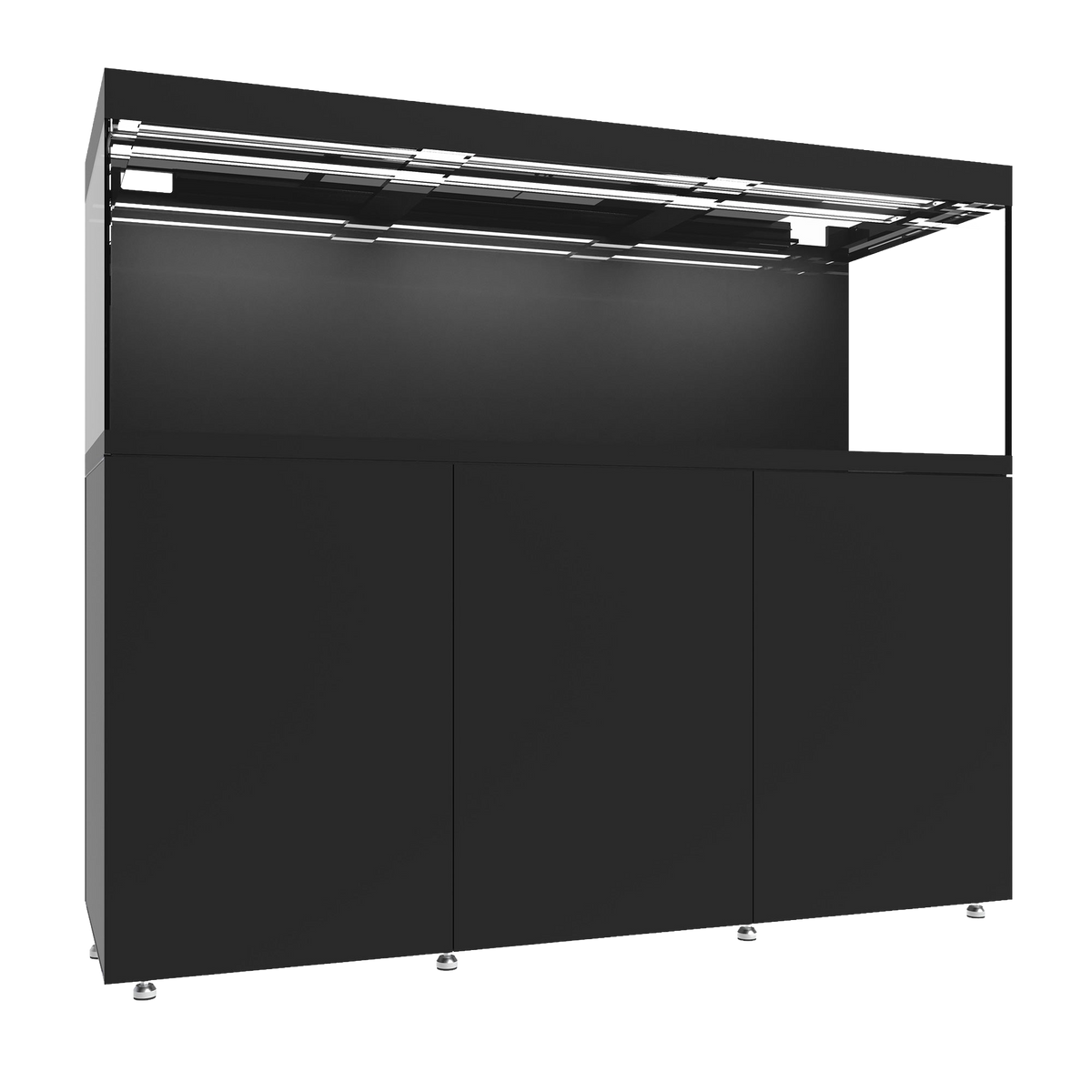

Waterbox EDEN X 175 FLED
Representative product image. The selected finish or configuration may differ.
Waterbox · Aquariums
Waterbox EDEN X 175 FLED
$5,998.00 CAD
Taxes and delivery confirmed before payment.
EDEN X 175 FLED pairs a freshwater display with a matching cabinet and FLED lighting. Its covered design provides a neat starting point for a planted or community aquarium.
- Aquarium dimensions (L × W × H)
- 1,836 x 643 x 650mm / 72.3" × 25.3" × 25.6"
- Aquarium volume
- 630 L/167 gals
- Front and side glass thickness
- 12mm (1/2")
SKU:
Your next aquarium
Let’s plan your setup.
We’ll confirm availability, timing, and delivery or pickup for your selected aquarium. Need equipment too? We can help put together a complete setup.
Enquiry only. No payment required.
The details, before you decide
Specifications
System
| System Length | 1,836mm/72.3" |
|---|---|
| System Width | 643mm/25.3" |
| System Height (with Cabinet) | 1,577mm/62.1" |
| Total System Weight | 240 kg/529 lbs |
Aquarium
| Dimensions | 1,836 x 643 x 650mm / 72.3" × 25.3" × 25.6" |
|---|---|
| Aquarium Volume | 630 L/167 gals |
| Aquarium Weight | 180 kg/397 lbs |
| Ultraclear Front & Sides | 12mm (1/2") |
| Bottom Glass | 15mm (3/5″) |
| Regular Braced-braced Top | 10mm (2/5") |
| Glass Material | Ultra-clear Low Iron glass |
| Transmittance | 91% |
| Mitered Joints | 45-degrees |
| Tank Lid | 5mm Black Glass |
| Max Water Level | 562mm (22.1") |
| Max LED Lighting Length | 1,810mm (71.3") |
| Min LED Lighting Length | 1,721mm (67.8") |
| Max LED Lighting Thickness | 42mm (1.7") |
| Max Canister Filter Piping | DN32 (ID: 32mm OD: 40mm) |
| Vinyl on Rear Glass | Black for BLK, White for WHT |
| Silicone Color | Black for BLK, Clear for WHT |
| Top Banding Width | 85mm (3.3") |
| Bottom Banding Width | 40mm (1.5") |
| EVA Mat (Black/White) | x 1 |
LED Lighting
| LED Lighting for Freshwater | FLED 140 |
|---|---|
| Length | 1,790mm (70.5") |
| Width | 92mm (3.6") |
| Height | 10mm (2/5") |
| Wattage | Max.70W x 2 |
Marine- Shield Cabinet
| Cabinet Model | MSII 7225 |
|---|---|
| Cabinet Dimensions | 1,836 x 643 x 927mm / 72.3" × 25.3" × 36.5" |
| Sump Compartment (Int. Dimensions) | 1,795 x 541 x 848mm / 70.7" × 21.3" × 33.4" |
| Cabinet Framework | Anti-corrosion Aluminum Alloy |
| Door Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board |
| Side Panels | Aluminum Composite |
| Bottom Panels | 10mm PVC Board |
| Back Panels | 5mm PVC Board |
| Cabinet Weight | 60 kg/132 lbs |
| Cabinet Color | WHT-White, BLK-Black |
Manufacturer volumes are nominal. Allow room for plumbing, cables, ventilation and maintenance. Cabinet specifications apply only when a cabinet is selected.
Manufacturer information ↗What’s included
- Ultra-clear glass aquarium
- Matching cabinet in the selected finish
- Black glass lid
- FLED 140 freshwater lighting, two fixtures
- Stabilizing foam mat
Plan separately
- Filter and filter media sized for the aquarium
- Heater if needed for the chosen livestock, plus temperature monitoring
