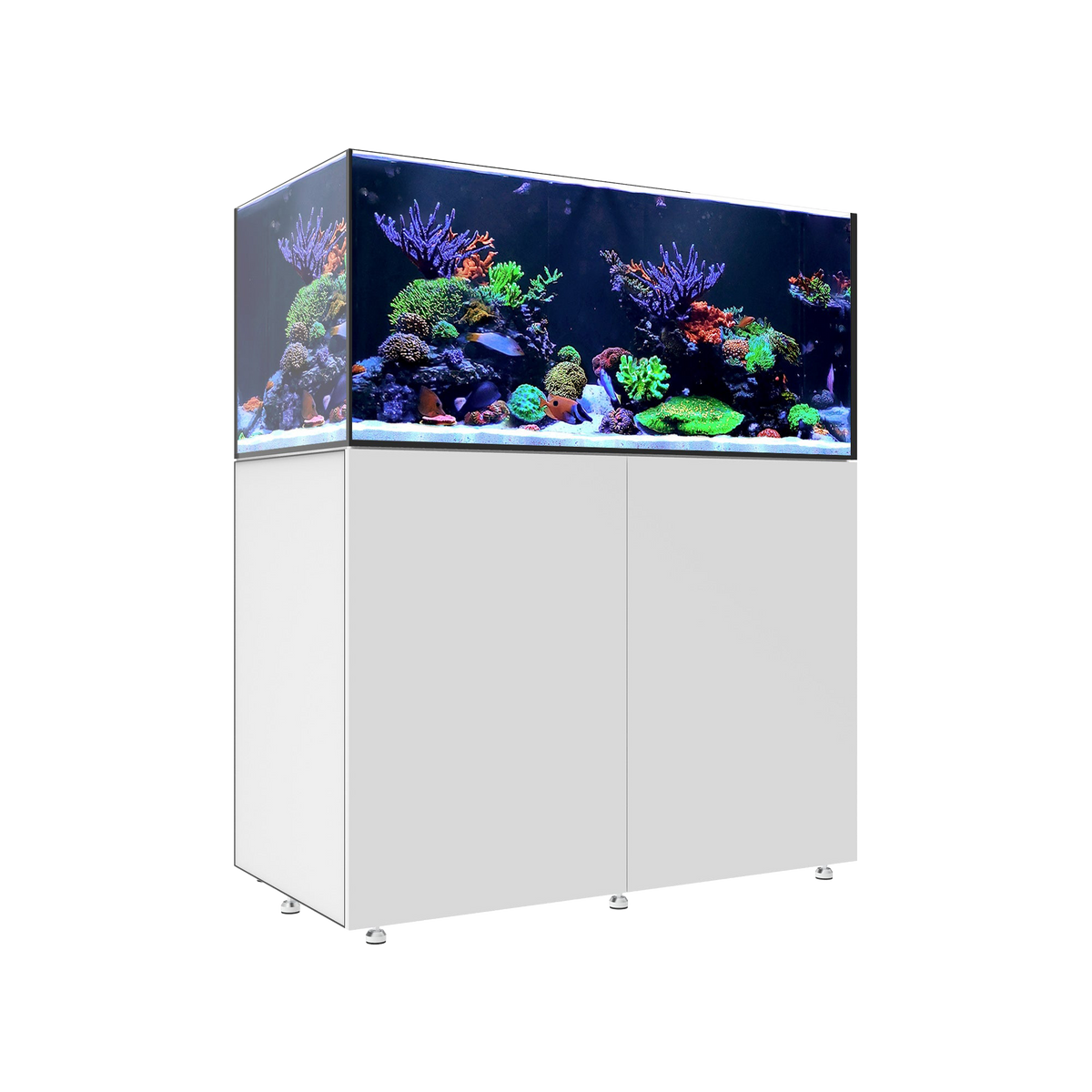

Waterbox INFINIA Reef 150.4 — White / System Only
Representative product image. The selected finish or configuration may differ.
Waterbox · Aquariums
Waterbox INFINIA Reef 150.4
$4,399.00 CAD
Taxes and delivery confirmed before payment.
INFINIA Reef 150.4 is a sump-filtered reef system whose taller display offers room for rockwork and an open swimming area. An aluminum-framed cabinet, configurable sump and pre-engineered plumbing provide the foundation for a custom saltwater setup.
- Aquarium dimensions (L × W × H)
- 1,223 x 643 x 550mm / 48.2" × 25.3" × 21.7"
- Display volume
- 399 L/105.5 gals
- Total volume with ATO reservoir
- 573 L/151.3 gals
SKU:
Your next aquarium
Let’s plan your setup.
We’ll confirm availability, timing, and delivery or pickup for your selected aquarium. Need equipment too? We can help put together a complete setup.
Enquiry only. No payment required.
The details, before you decide
Specifications
System
| Height with Cabinet | 1,477mm/58.2" |
|---|---|
| Total Volume with ATO | 573 L/151.3 gals |
| Total System Weight | 191 kg/421 lbs |
Display Tank
| Tank Dimensions | 1,223 x 643 x 550mm / 48.2" × 25.3" × 21.7" |
|---|---|
| Glass Thickness | 12mm (1/2") |
| Aquarium Volume | 399 L/105.5 gals |
| Aquarium Weight | 98 kg/216 lbs |
| Glass Material | Ultra-clear Low Iron glass (front and sides) |
| Transmittance | 91% |

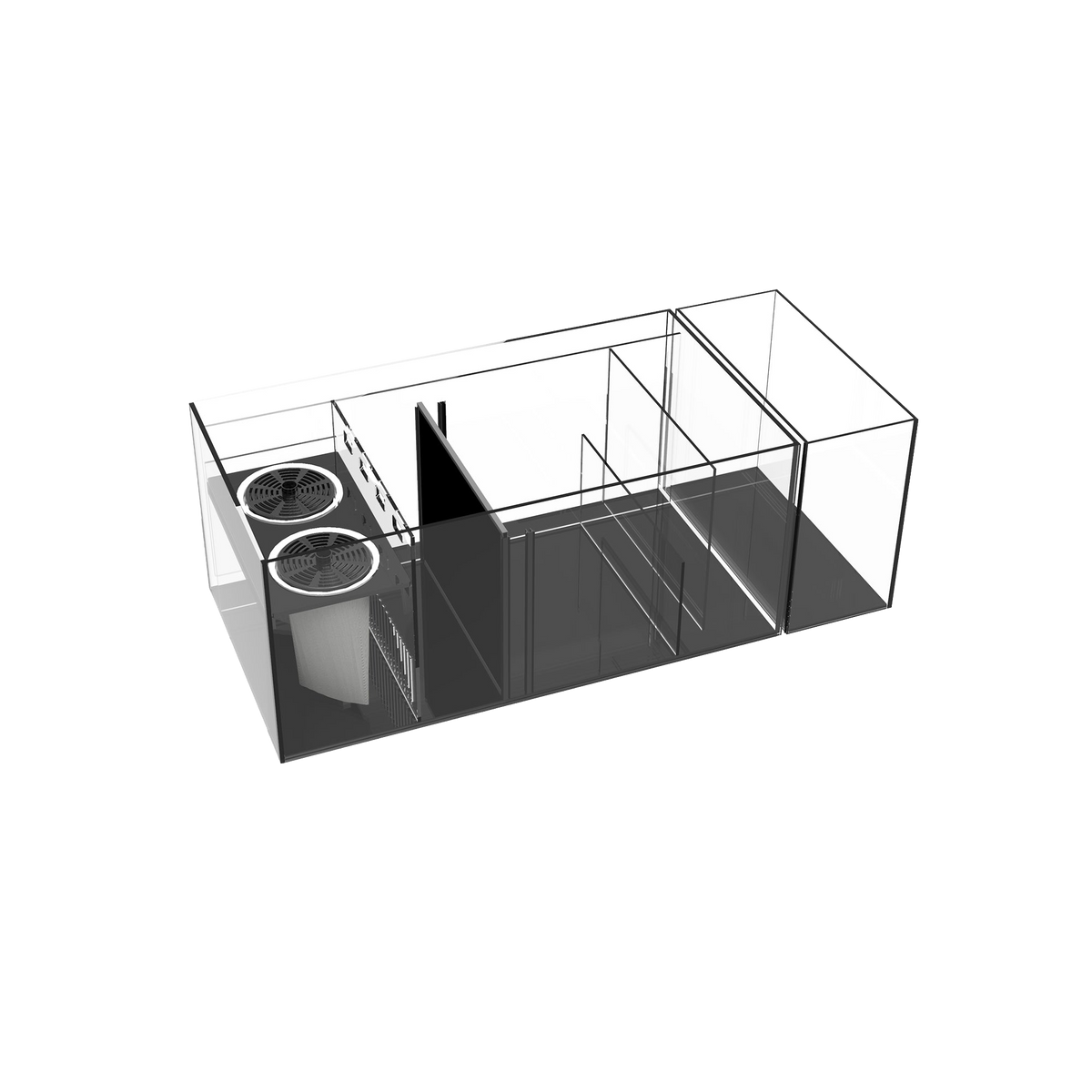

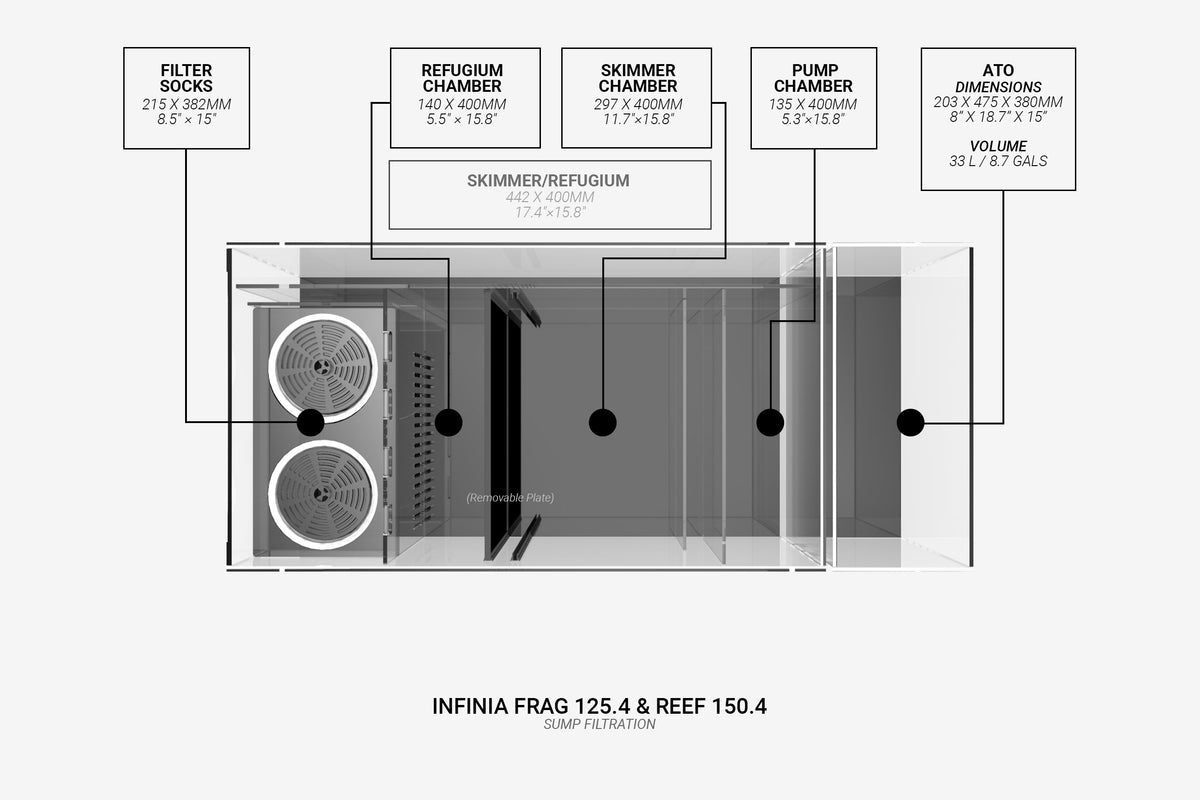

In-cabinet Sump
| Dimensions | 838 x 475 x 380mm / 33" × 18.7" × 15" |
|---|---|
| Sump Volume | 140 L/37.1 gals |
| Sump Weight | 40 kg/88 lbs |
| Glass Thickness | 8mm (5/16") |
| Refugium Chamber (Max Int. Dimensions) | 180 x 400mm / 7.1" × 15.8" |
| Refugium Chamber (Min Int. Dimensions) | 140 x 400mm / 5.5" × 15.8" |
| Skimmer Chamber (Int. DIM, w/o Refugium) | 416 x 400mm / 16.4" × 15.8" |
| Skimmer Chamber (Int. DIM, with Min Refugium) | 271 x 400mm / 10.7" × 15.8" |
| Skimmer Chamber (Int. DIM, with Max Refugium) | 231 x 400mm / 9.1" × 15.8" |
| Pump Chamber (Int. Dimensions) | 135x 400mm / 5.3" × 15.8" |
ATO Tank
| ATO Dimensions | 203 x 475 x 380mm / 8" × 18.7" × 15" |
|---|---|
| ATO Volume | 33 L/8.7 gals |
| ATO Weight | 9 kg/20 lbs |
| Glass Thickness | 6mm (1/4") |

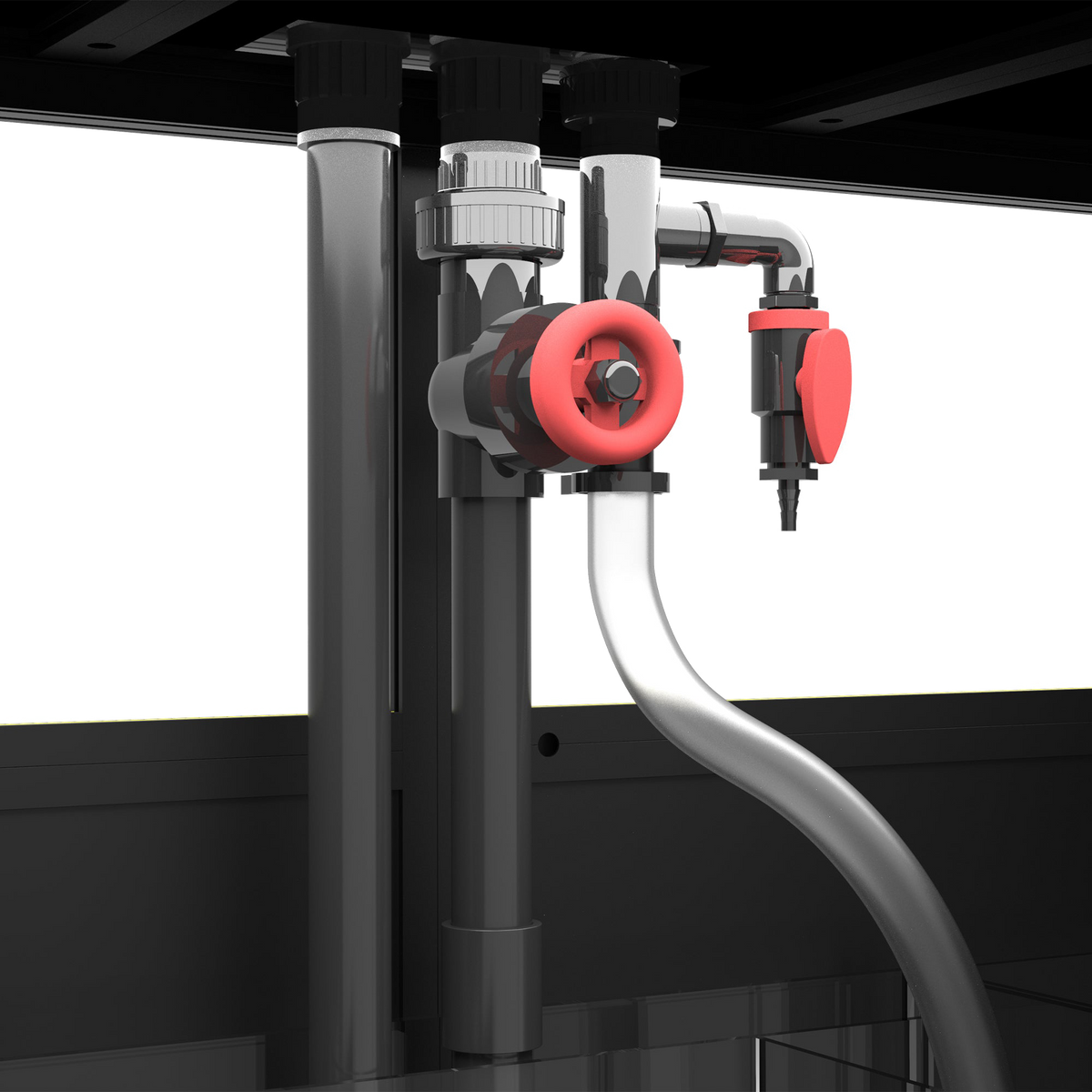

Plumbing
| Main Drain | DN32 (ID: 32mm OD: 40mm) |
|---|---|
| Emergency Overflow | DN32 (ID: 32mm OD: 40mm) |
| Pump Return | DN25 (ID: 25mm OD: 32mm) |
| Return Hose | lD: 25mm OD: 31mm |
| Nozzle(s) (Thread Size) | 2 x M25 (25mm) |
| Manifold Kit | Manifold 15 (Single outlet) |
Filtration
| Filter Socks | 2 x 180mm/7" FELT |
|---|---|
| Filter Sock Silencers | 2 x 180mm/7" |
| Interchangable with Roller Filter | YES |

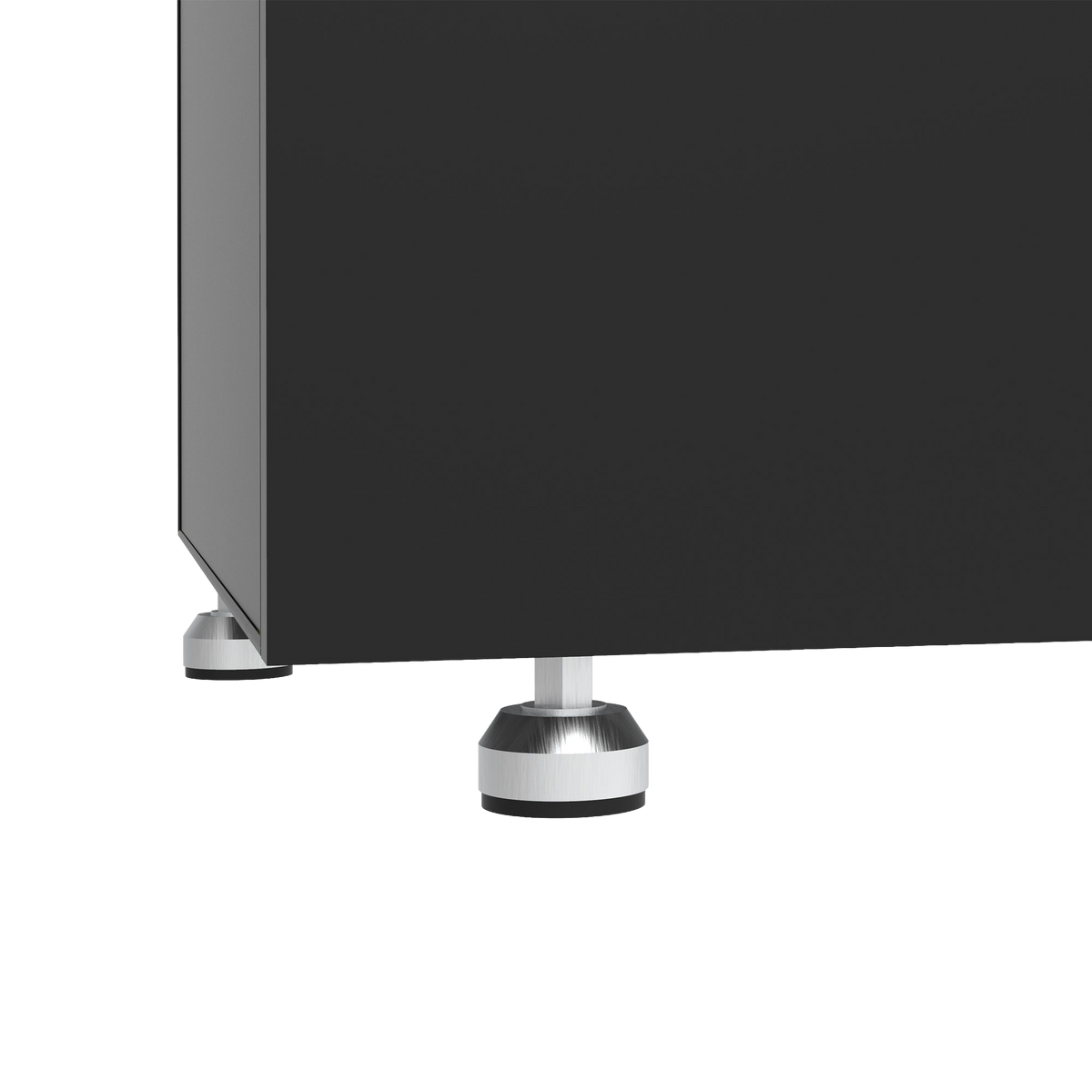

Marine- Shield Cabinet
| Cabinet Model | MSII 4825 |
|---|---|
| Cabinet Dimensions | 1,223 x 643 x 927mm / 48.2" × 25.3" × 36.5" |
| Sump Compartment (Int. Dimensions) | 1182 x 549 x 849mm / 46.5" × 21.6" × 33.4" |
| Cabinet Framework | Anti-corrosion Aluminum Alloy |
| Door Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board |
| Side Panels | Aluminum Composite |
| Bottom Panels | 10mm PVC Board |
| Back Panels | 5mm PVC Board |
| Cabinet Weight | 44 kg/97 lbs |
| Cabinet Color | WHT-White, BLK-Black |
Manufacturer volumes are nominal. Allow room for plumbing, cables, ventilation and maintenance. Cabinet specifications apply only when a cabinet is selected.
Manufacturer information ↗What’s included
- Ultra-clear glass aquarium and stabilizing mat
- Aluminum-framed cabinet in the selected finish
- Glass sump with removable filter-sock trays and refugium divider
- Separate freshwater top-off reservoir
- Plumbing with gate valve, check valve and single-outlet manifold
- Filter socks and sock silencers
Plan separately
- Return pump sized for the system and head height
- Aquarium lighting matched to the intended livestock
- Heater if needed for the chosen livestock, plus temperature monitoring
