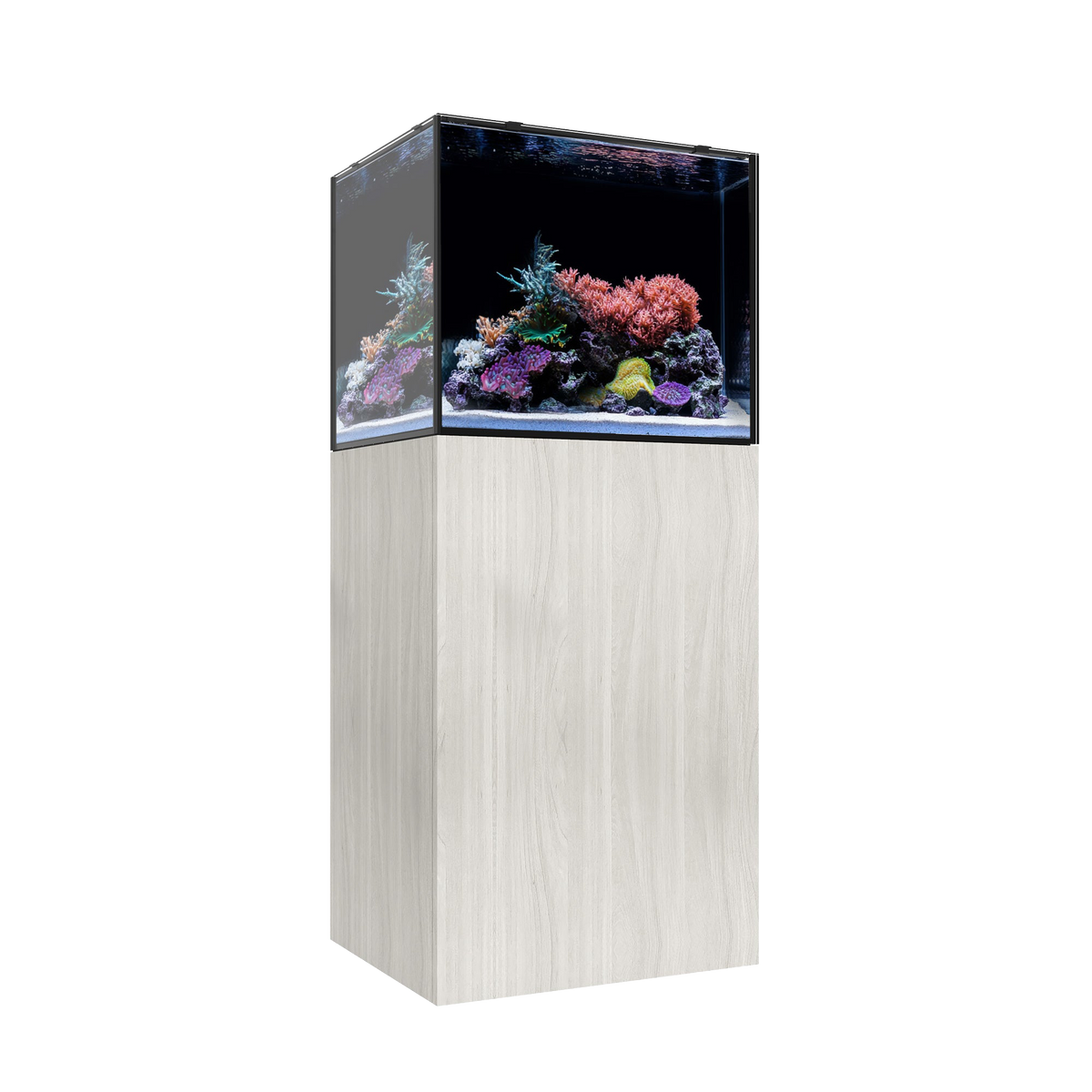

Waterbox MARINE EX 60.2 — White
Representative product image. The selected finish or configuration may differ.
Waterbox · Aquariums
Waterbox MARINE EX 60.2
$2,799.00 CAD
Taxes and delivery confirmed before payment.
MARINE EX 60.2 combines an ultra-clear saltwater display with an external overflow and acrylic sump. The aquarium, cabinet and plumbing provide a foundation for a reef system with equipment housed below the display.
- Aquarium dimensions (L × W × H)
- 600 x 500 x 500mm / 23.6"×19.7"×19.7"
- Display volume
- 136 L/36 gals
- Total volume with RO reservoir
- 207 L/54.7 gals
SKU: D2045
Your next aquarium
Let’s plan your setup.
We’ll confirm availability, timing, and delivery or pickup for your selected aquarium. Need equipment too? We can help put together a complete setup.
Enquiry only. No payment required.
The details, before you decide
Specifications
System
| Height with Cabinet | 1,400mm/55.1" |
|---|---|
| Total Volume with RO | 207 L/54.7 gals |
Display Tank
| Tank Dimensions | 600 x 500 x 500mm / 23.6"×19.7"×19.7" |
|---|---|
| Glass Thickness | 10mm (2/5") |
| Aquarium Volume | 136 L/36 gals |
| Aquarium Weight | 37.7 kg/83 lbs |
| Glass Material | Ultra-clear Low Iron glass (front and sides) |
| Transmittance | 91% |

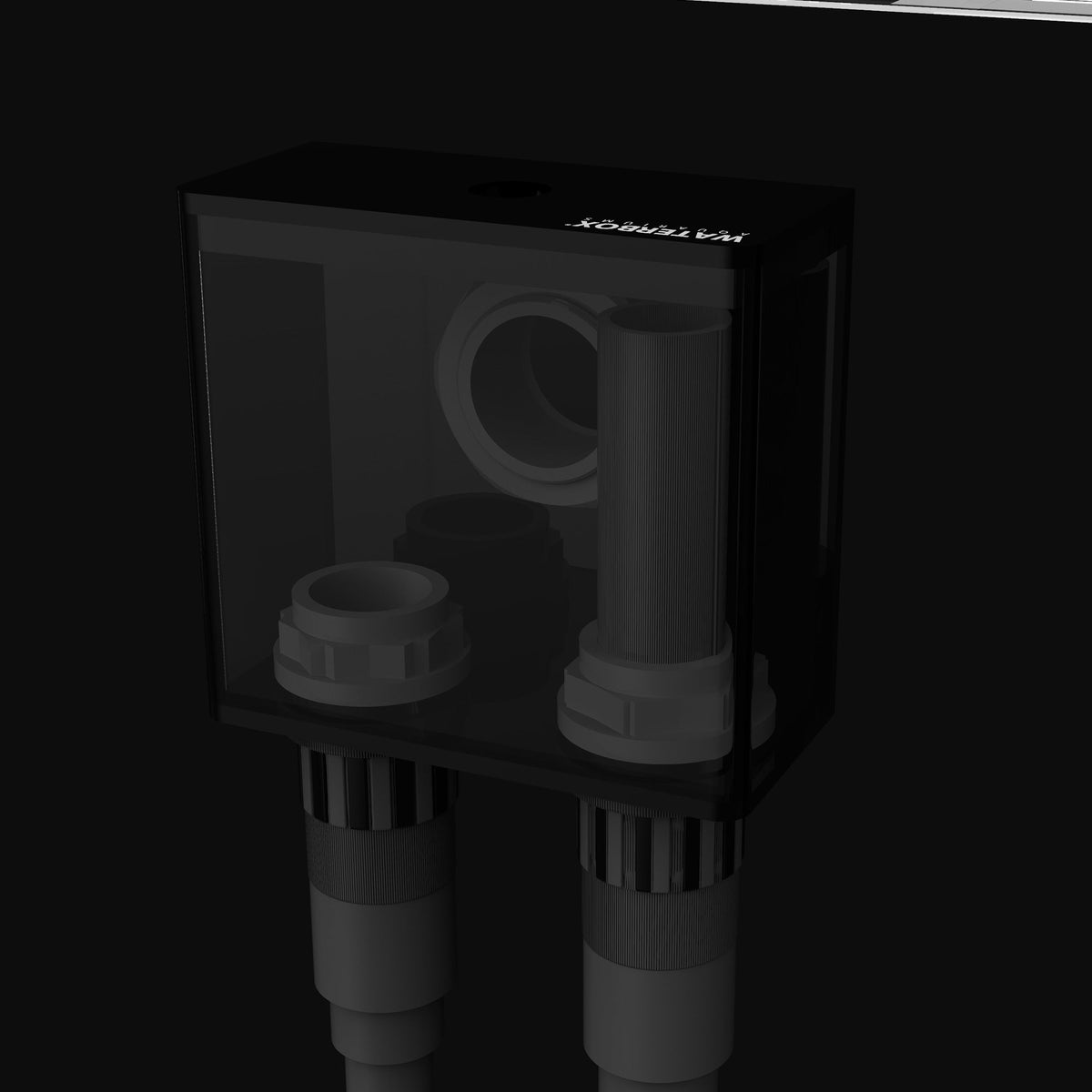

| Overflow Type | Acrylic External Overflow |

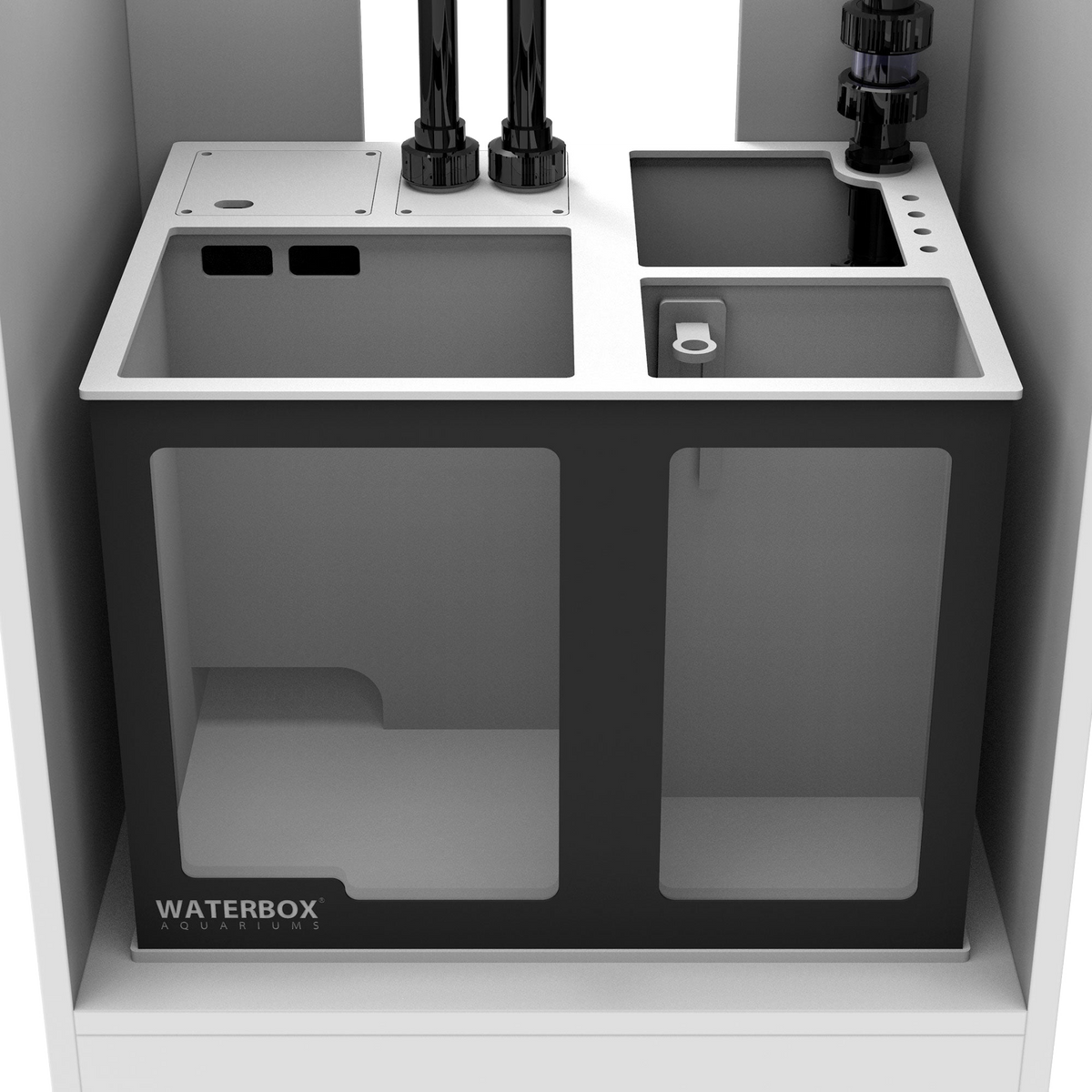

In-cabinet Sump
| Dimensions | 510 x 410 x 380mm / 20.1" × 16.1" × 15" |
|---|---|
| Sump Volume | 71 L/18.7gals |
| Sump Weight | 9 kg/20 lbs |
| Acrylic Thickness | 5mm (3/16") |
| Skimmer Chamber (Internal Dimensions) | 265 x 245mm / 10.4"×9.7" |
| Skimmer Chamber (Cutout Dimensions) | 250 x 230mm / 9.8"×9.1" |
| Pump Chamber (Internal Dimensions) | 195 x 225mm / 7.7"×8.9" |
| Pump Chamber (Cutout Dimensions) | 162 x 211mm / 6.4"×8.3" |
| RO Reservoir (Cutout Dimensions) | 184 x 146mm / 7.2"×5.7" |
| RO Reservoir (Internal Dimensions) | 195 x 160mm / 7.7"×6.3" |
| RO Volume | 11.3 L/3 gals |

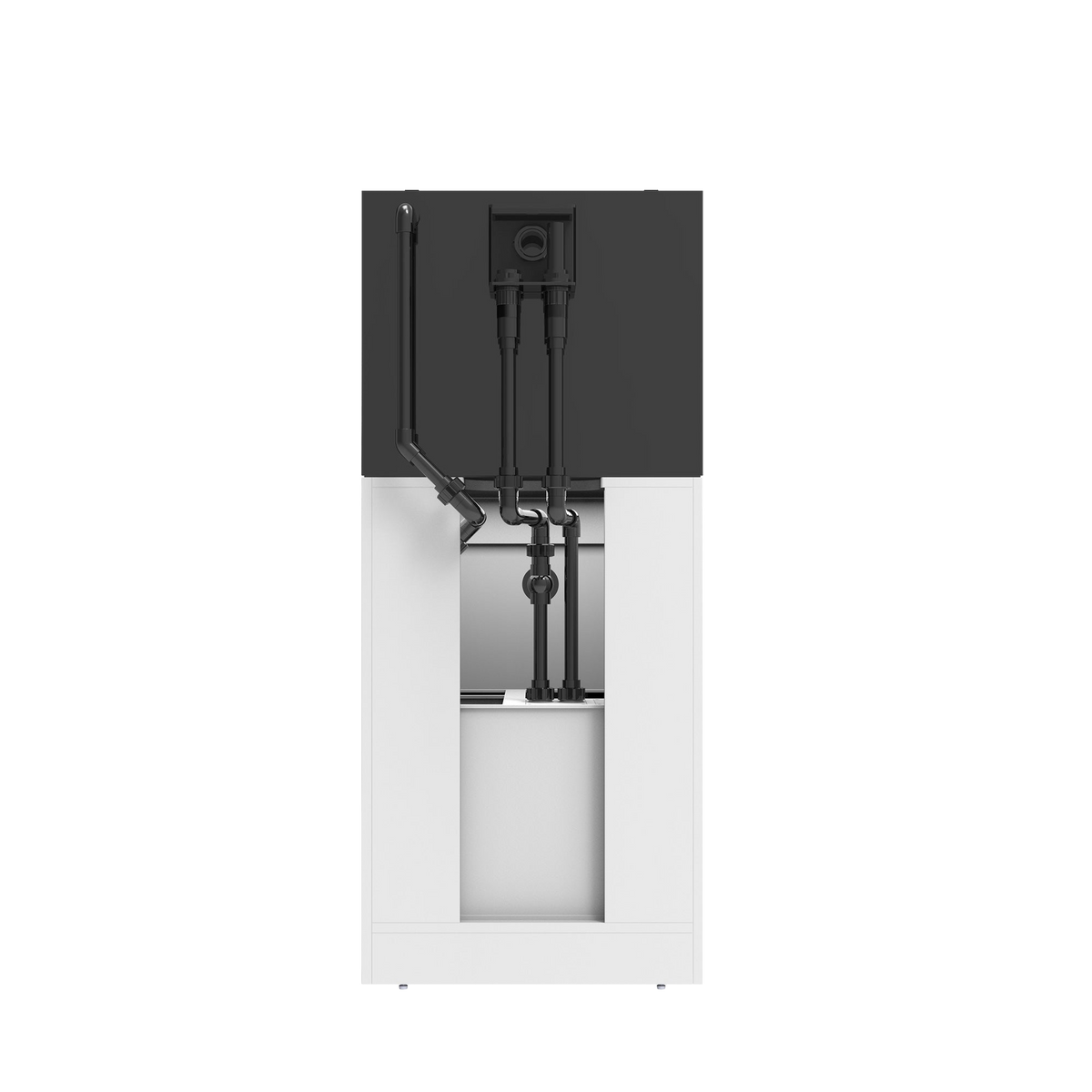

Plumbing
| Main Drain | DN20 (ID: 20mm OD: 25mm) |
|---|---|
| Emergency Overflow | DN20 (ID: 20mm OD: 25mm) |
| Pump Return | DN20 (ID: 20mm OD: 25mm) |
| Nozzle(s) (Thread Size) | 2 x M20 (20mm) |
Filtration
| 225 Micron Filter Socks | 1 x 105mm/4" FELT |
|---|---|
| Filter Sock Silencers | 1 x 105mm/4" |
Cabinet
| Cabinet Model | OSB 2420 |
|---|---|
| Cabinet Dimensions | 600 x 500 x 900mm / 23.6" × 19.7" × 35.4" |
| Sump Compartment (Int. Dimensions) | 524 x 468 x 813mm / 20.6" × 18.4" × 32" |
| Cabinet Framework | 18mm PVC Laminated Wood Oriented Strand Board |
| Door & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Bottom Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Back Panels | 18mm PVC Laminated Wood Oriented Strand Board |
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen |
Manufacturer volumes are nominal. Allow room for plumbing, cables, ventilation and maintenance. Cabinet specifications apply only when a cabinet is selected.
Manufacturer information ↗What’s included
- Ultra-clear glass aquarium with external overflow
- Cabinet in the selected finish
- Acrylic sump with RO reservoir
- Plumbing kit, filter sock and sock silencer
Plan separately
- Return pump sized for the system and head height
- Aquarium lighting matched to the intended livestock
- Heater if needed for the chosen livestock, plus temperature monitoring
